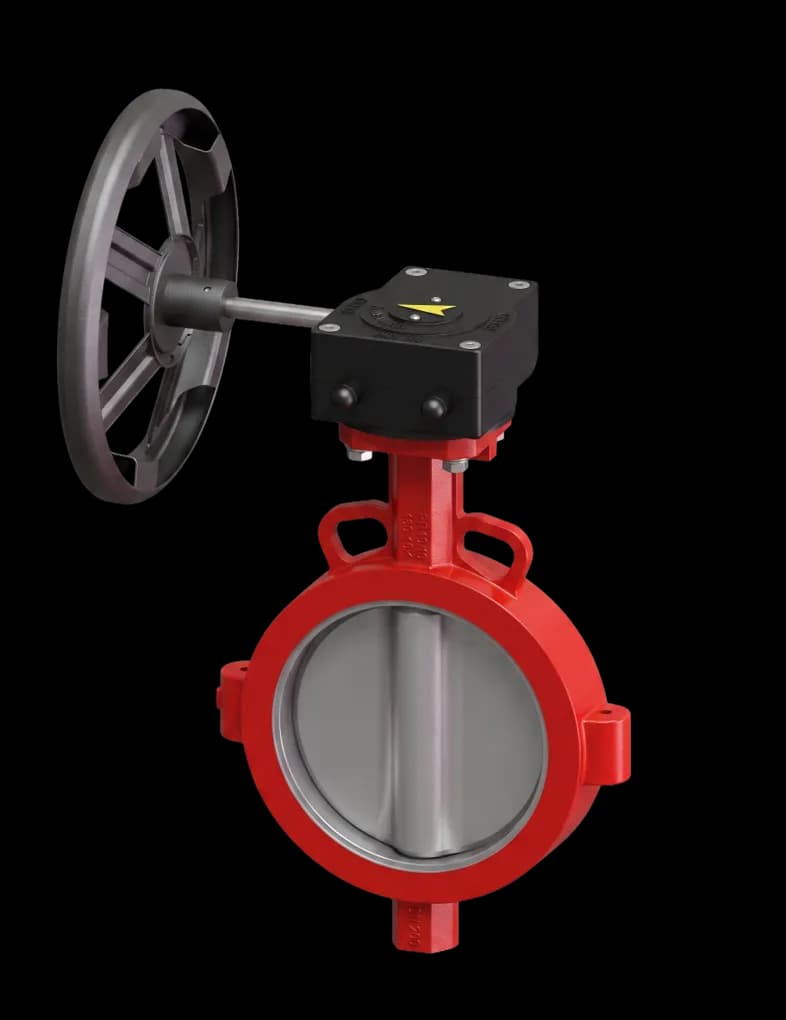

Double Offset Butterfly Valve

High-performance double eccentric butterfly valve with energized polymer seats for high pressure and chemical duty.

Technical Specifications

Specification Parameter	Engineering Details
Offset Mechanics	Stem offset from disc centerline & valve body centerline
Seat Materials	RTFE, PTFE, Fire-Safe (PTFE + Metal backup), UHMWPE
Pressure Rating	ASME Class 150, Class 300 / PN16, PN25, PN40
Size Range	2" to 60" (DN50 to DN1500)
Applications	High pressure steam, hydrocarbon processing, district heating
